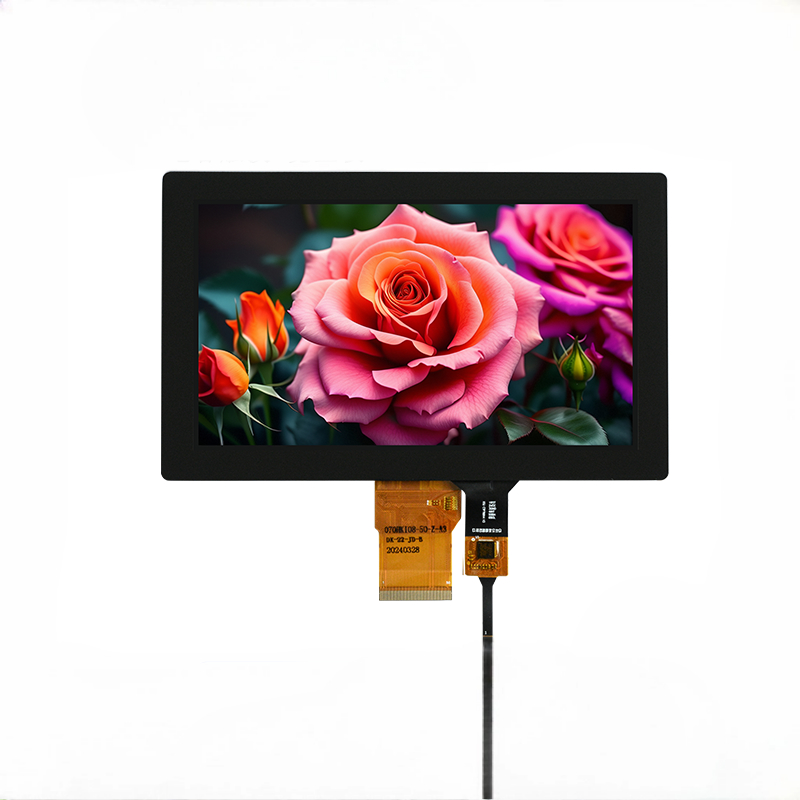

Name: OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brand: HongKong Guanke Industrial Limited
SKU: Las condiciones de los requisitos de seguridad
Price: 3.10 USD
Availability: InStock

En casa > productos > módulo del lcd del tft >

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

7 inch TFT LCD module with LVDS

7 inch TFT LCD touchscreen display

1000 nits TFT LCD control panel

Lugar de origen:

Dongguan, China

Nombre de la marca:

Fangsheng

Certificación:

ISO9001:2015,IATF16949,RoHS,Reach,etc

Número de modelo:

Las condiciones de los requisitos de seguridad

Contacta con nosotros

Solicitar una cita

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

Detalles del producto

Nombre del producto:

OEM ODM Módulo LCD TFT de 7 pulgadas con pantalla táctil de interfaz LVDS 1000 Nits Pantalla LCD TFT

Brillo:

1000 liendres

Interfaz:

SPI/RGB/MIPI/LVDS, etc.

Características:

Amplio rango de temperatura, alto brillo, anti-interferencias, resistencia a los golpes, duradero

Costumbre:

PFC, CTP, vidrio de cubierta, etc.

Aplicación:

Los paneles de control de automatización de las fábricas, las pantallas de las máquinas CNC, etc.

Resolución:

800x480 (Personalizado)

Resaltar:

7 inch TFT LCD module with LVDS

7 inch TFT LCD touchscreen display

1000 nits TFT LCD control panel

Condiciones de pago y envío

Cantidad de orden mínima

500

Precio

$0.1-$8

Detalles de empaquetado

Bolsa de burbujas + Blister + Caja de espuma + Cartón

Tiempo de entrega

3 a 5 días hábiles

Condiciones de pago

LC, T/T, D/A, D/P, Western Union, Paypal

Capacidad de la fuente

200K juegos / mes

Productos relacionados

+86 136 3170 3190

fssales03@fsdzlcd.com

86-769-2270-5825

Contacta ahora

Descripción del producto

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

Product Specifications

Attribute	Value
Product Name	OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brightness	1000 nits
Interface	SPI/RGB/MIPI/LVDS, etc.
Features	Wide temperature range, high brightness, anti-interference, shock resistance, durable
Custom	PFC, CTP, Cover glass, etc.
Application	Factory automation control panels, CNC machine displays, etc.
Resolution	800x480 (Custom)

Key Features

High brightness up to 800/1000/1500 nits for sunlight readability
Wide operating temperature from -30°C to +85°C for extreme environments
Ultra-low power consumption for energy-saving performance
High contrast ratio for vivid and sharp images
Fast response time (<20ms) for smooth video playback
High pixel density for crisp text and detailed graphics

Technical Parameters

Parameter	Specification
Resolution	800 × 480 pixels
Interface	LVDS
Driver IC	RM533CO + RM577C1
Viewing Angle	Free Viewing Angle (Free V.A)
Touch Support	Capacitive Touch Panel (CTP)
Operating Temp.	-30°C to +85°C (Wide Temperature Range)
Brightness	1000 nits (High Brightness)
Dimensions	165.40 × 104.59 × 7.73 mm
Active Area	152.40 × 91.44 mm
Key Features	Capacitive Touch Display, Wide Temp TFT, High-Brightness TFT
